/Hookloaders are ready for work without limit
Well known for their low maintenance and reliability to handle a wide variety of loads and containers.

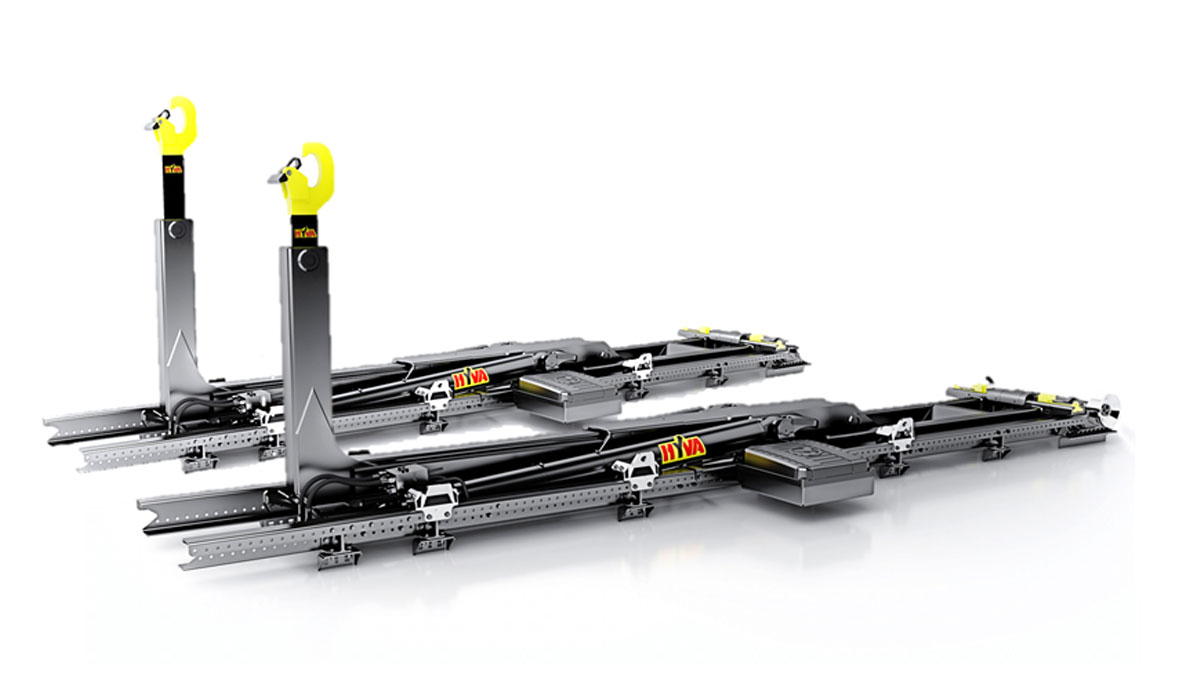

Hyva’s range of hookloaders covers everything from lightweight 3.5 tonnes van chassis cabs right through to 32 tonnes gvw eight wheelers. As with all Hyva equipment, our hookloaders are strong, robust, durable and inherently safe to use. Of advanced design and built with premium specification materials, Hyva hookloaders also maximise their payload potential.
hookloaders

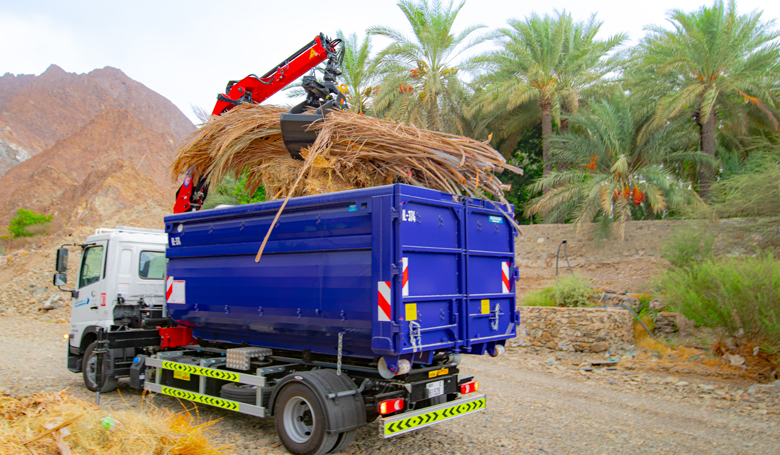

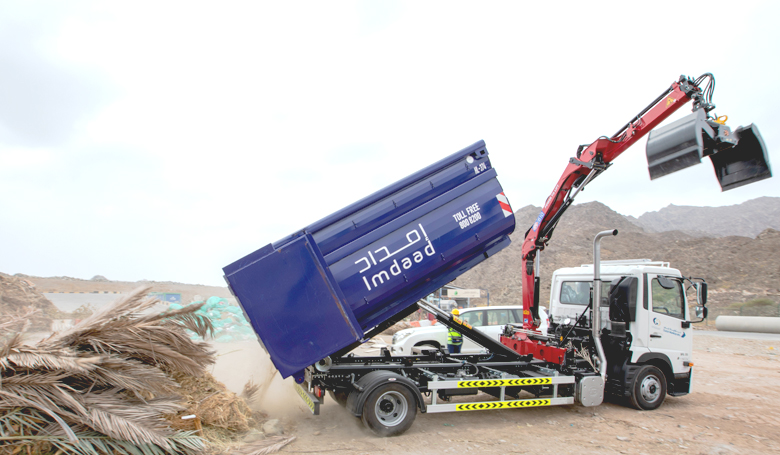

For out and out versatility in handling bulk waste, nothing really beats a hookloader. Being able to drop and recover all sizes and types of containers in almost any operating environment gives hookloaders a huge operating advantage. And to use the truck as a conventional tipper too.Whether employed on waste and landfill, demolition, with demount bodies by local authorities or moving hazardous industrial refuse, the hookloader is the true ‘All in One’ solution.
Hyva’s range of hookloaders covers everything from lightweight 3.5 tonnes van chassis cabs right through to 32 tonnes gvw eight wheelers. As with all Hyva equipment, our hookloaders are strong, robust, durable and inherently safe to use. Of advanced design and built with premium specification materials, Hyva hookloaders also maximise their payload potential.
- Aluminium chequred protection cover over valve block.
- Emergency handle for control valve block so the hook loader can be operated in case of a malfunction in-cab controls.
- Main lift cylinder has a separate manifold with built in hose burst protection, over center valve.
- High strength hydraulic container locking (ADR approved)
- All pivoting points are provided with greased bronze bearings.
- Tipping hook provided with integrated and automatic safe self-locking latch mechanism that mechanically locks and unlocks using an excentre weight.
- The standard removable hook is made of low wear WELDOX steel with a yield-strength of 700MPa.
- Further safety is provided during the unloading procedure as tipping frame automatically and mechanically locks onto the main frame into clasps located on the inner side of the bottom frame runners.

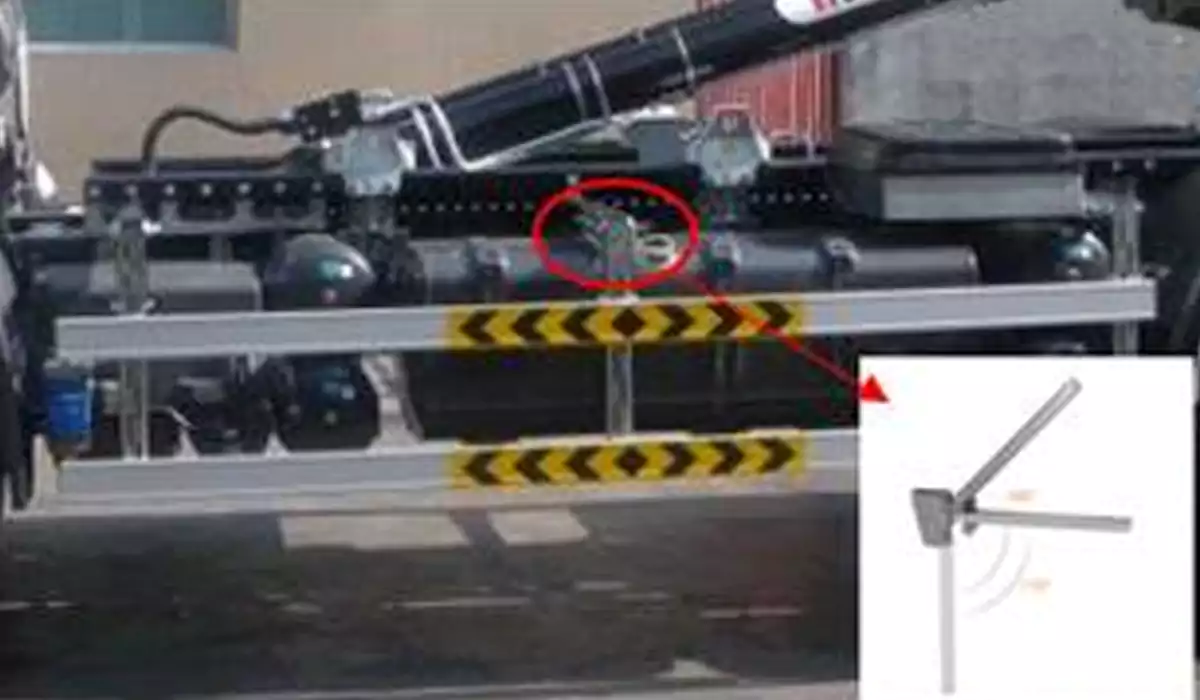

- CE certified tiltable sideguards brackets with easy opening allowing quick and easy access for maintenance of vehicle.
- High quality CE mudguard from lightweight, rigid and UV resistant polyethylene material.

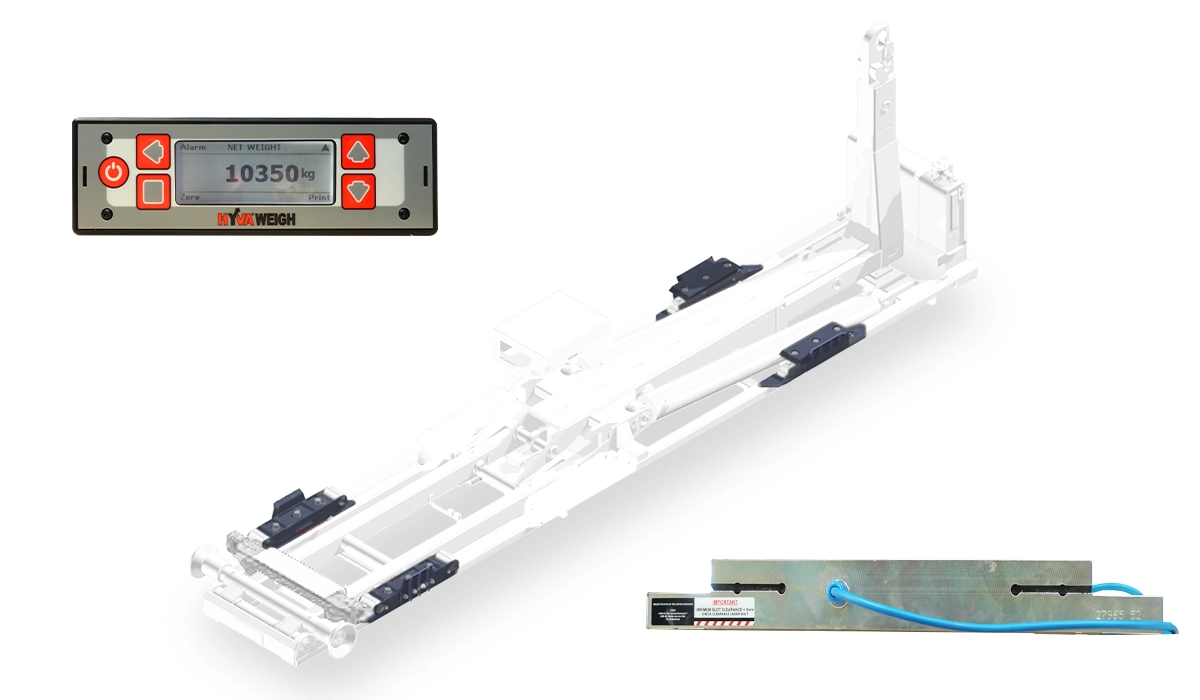

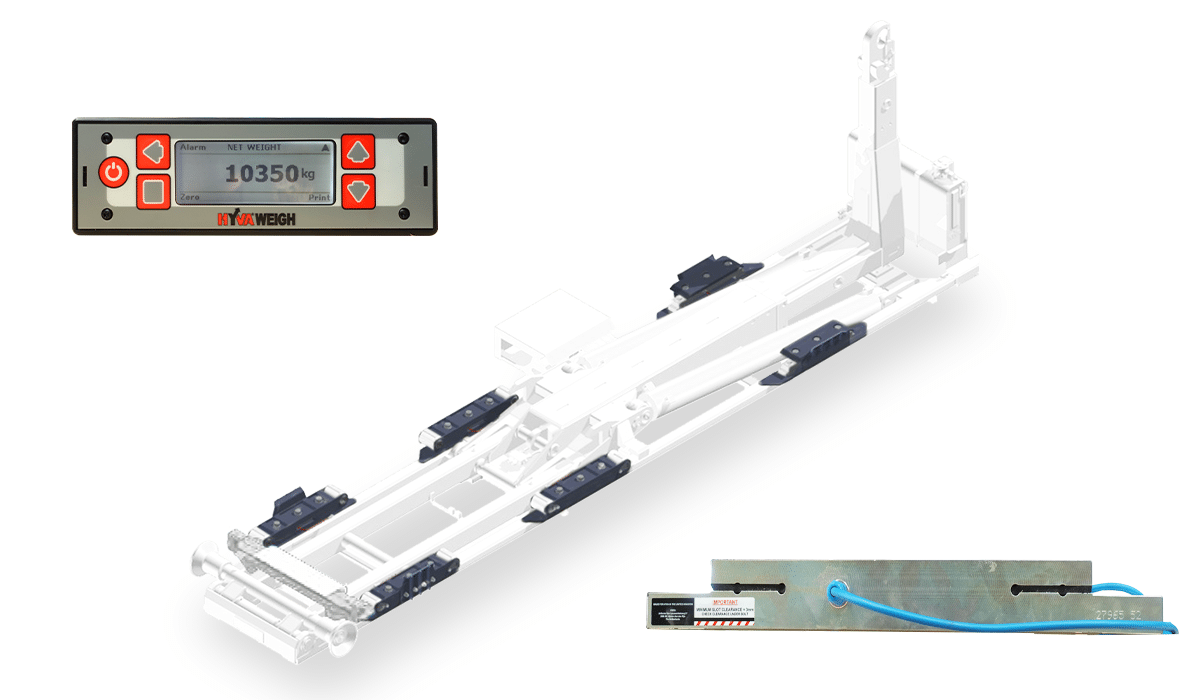

Weighing system
Hyva Weighing system is simple to install and offers cost effective overload protection for new and existing vehicles.
Features and Benefits
- Accuracy ±3% FSD (90 – 100%)
- Simple to operate
- no moving parts and is not susceptible to wear or slipping out of calibration
- Rugged for harsh environments
- Container sits on the load cell, no high stresses on mounting points.
- Overload alarm, audible or visual
- Balanced load distribution
- Reduce vehicle wear and tear and fuel consumption
Features

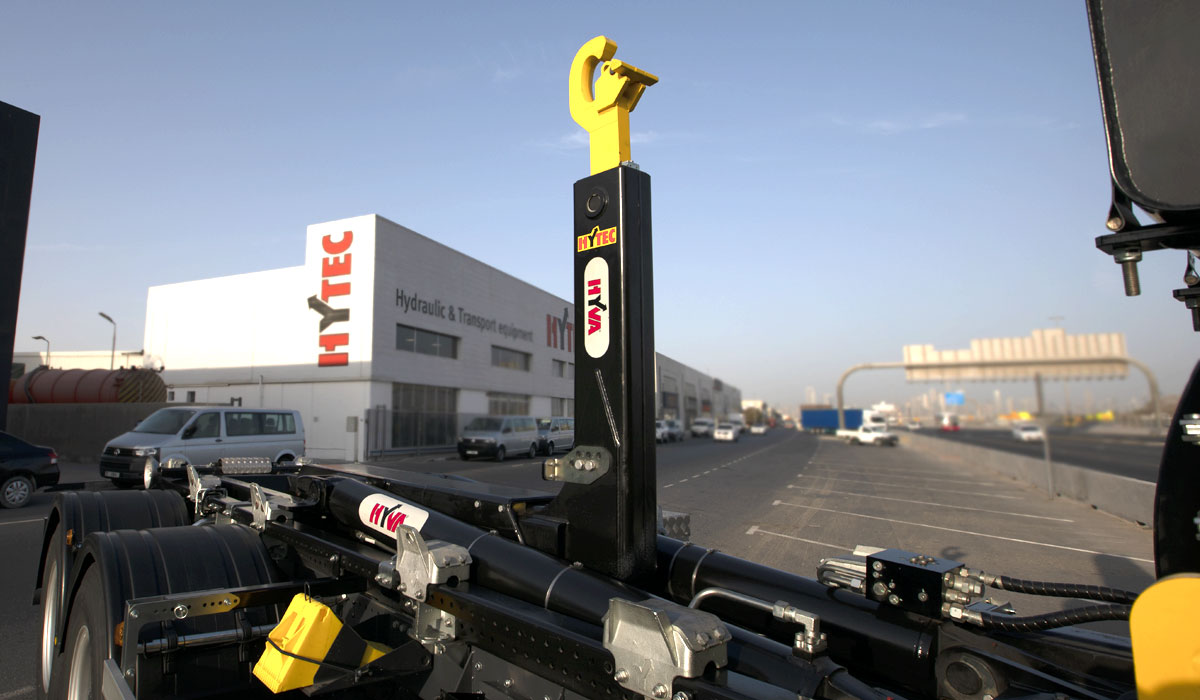

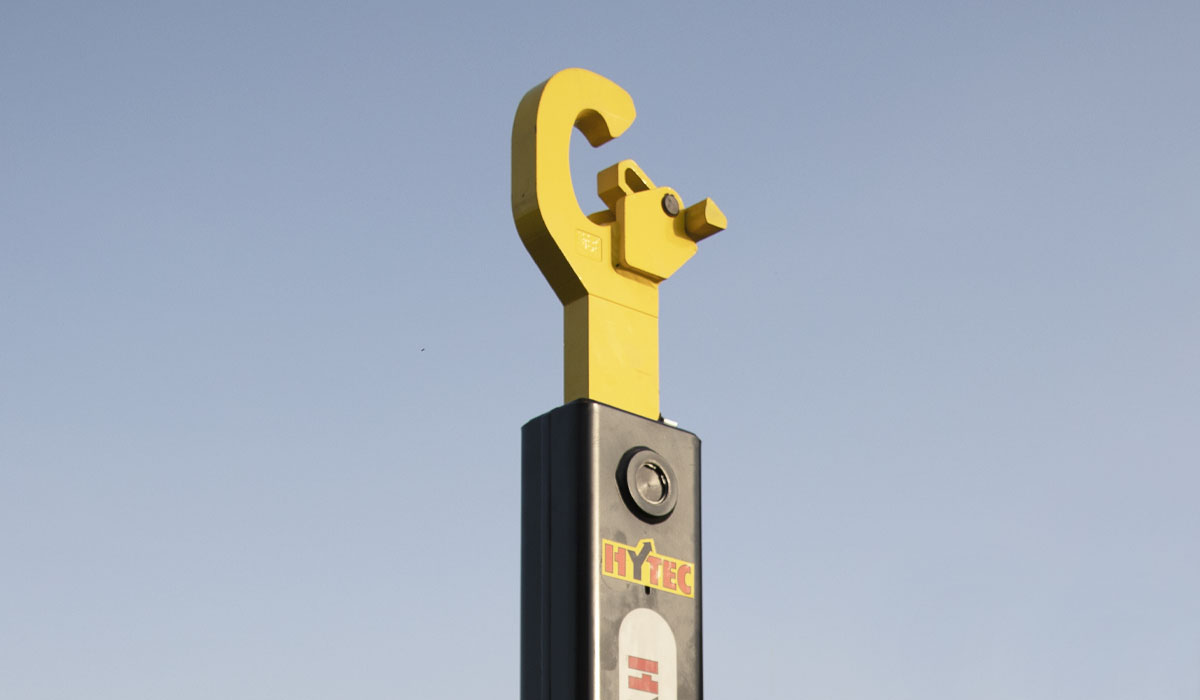

Easy removable hook with integral safety latch hook

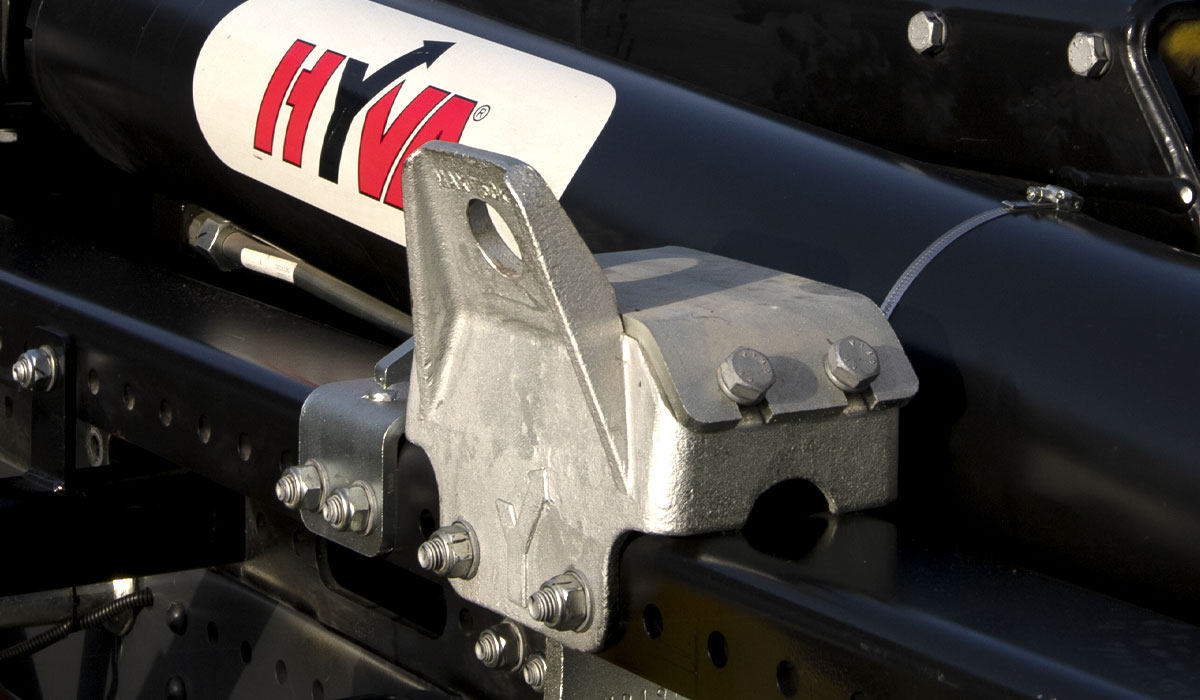

Galvanized container supports

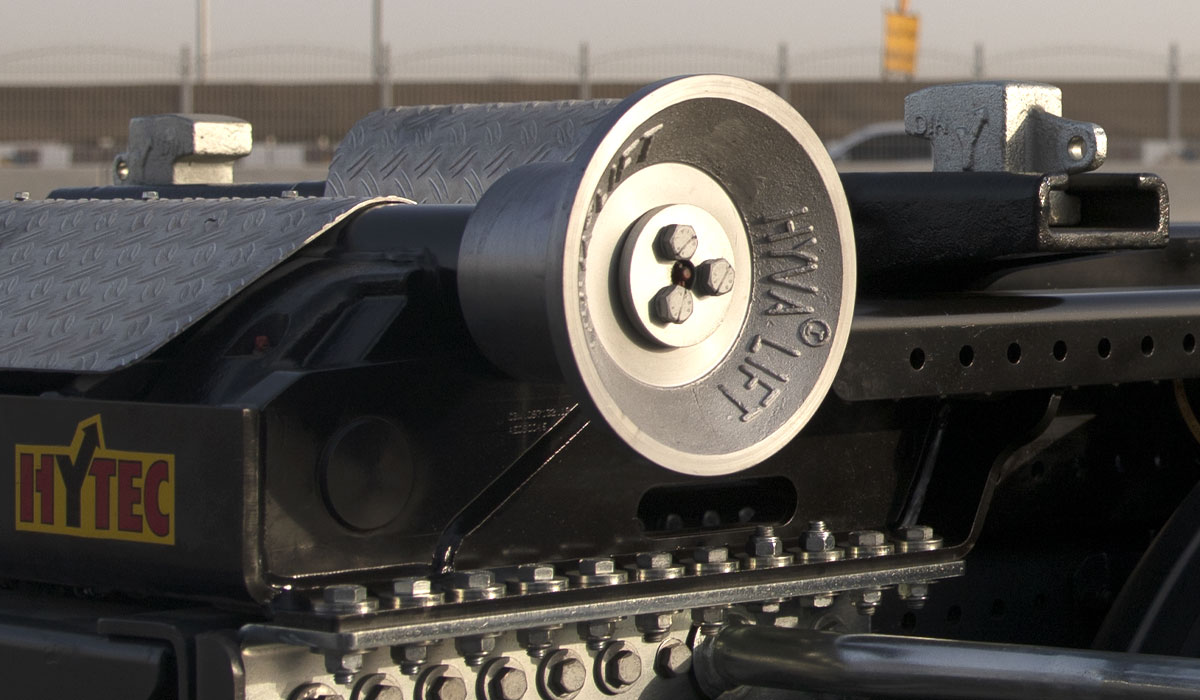

Strong rear rollers
Inside and outside container combi-lock

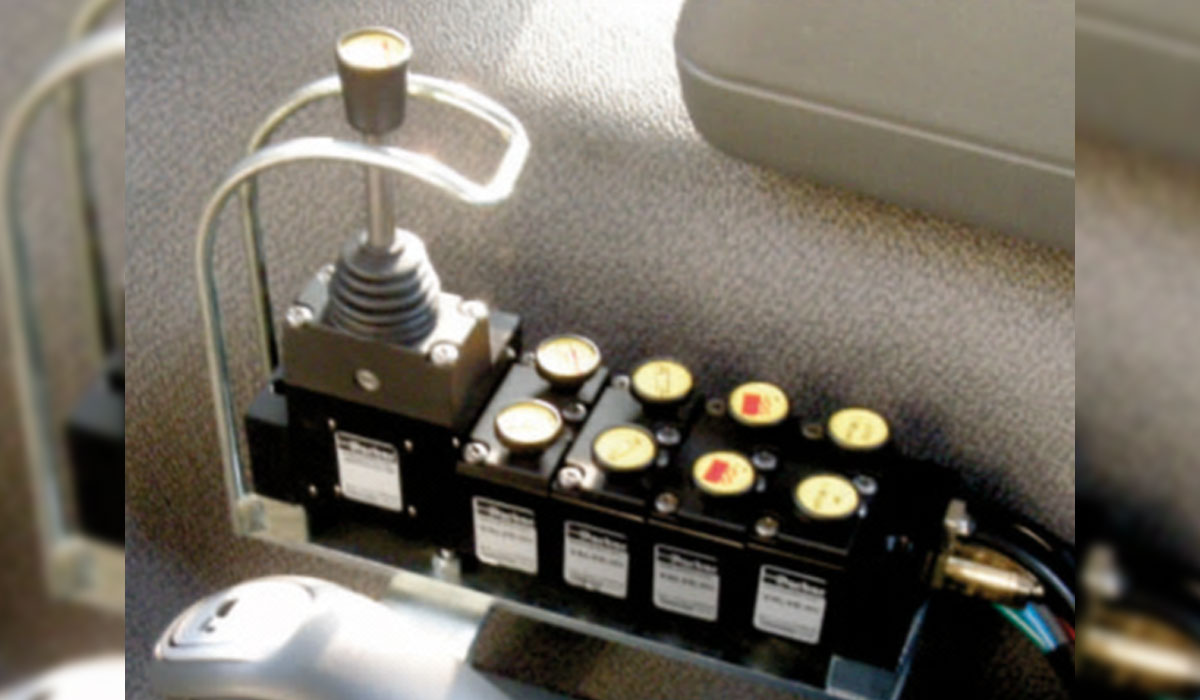

In-cab pneumatic controls
High quality factory painted
Manifold on main cylinder
Axle stability jacks
Factory designed mounting brackets

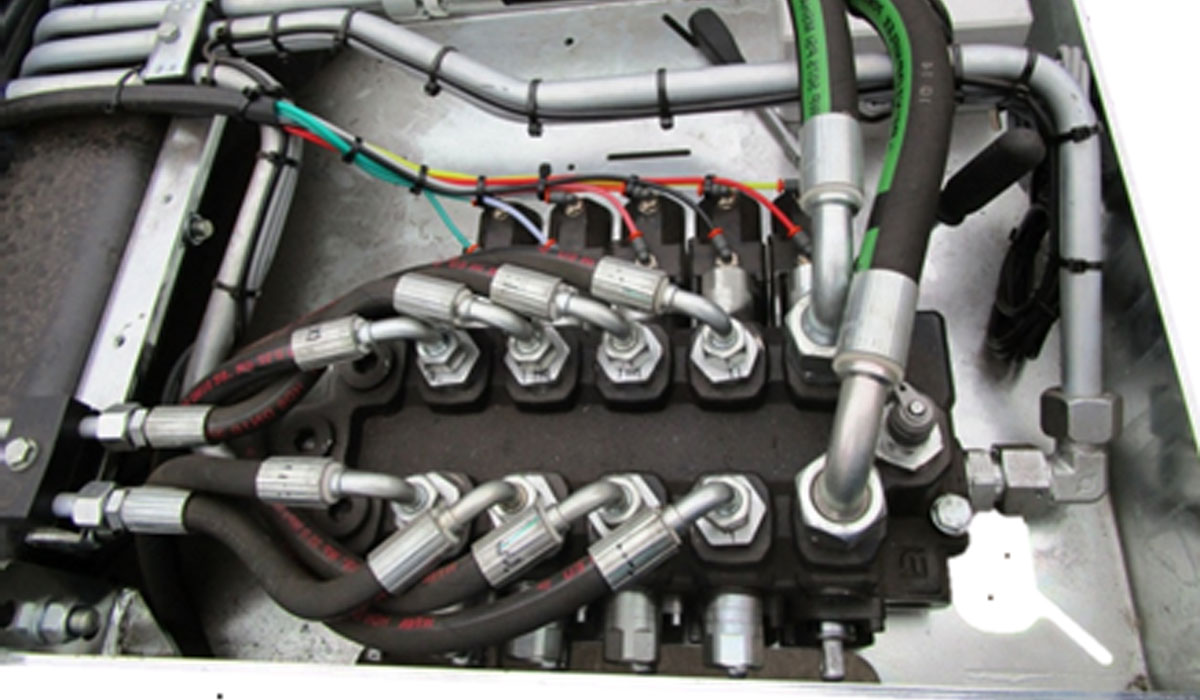

Extra hydraulic function (optional)
TWS – System integrated truck weighing system

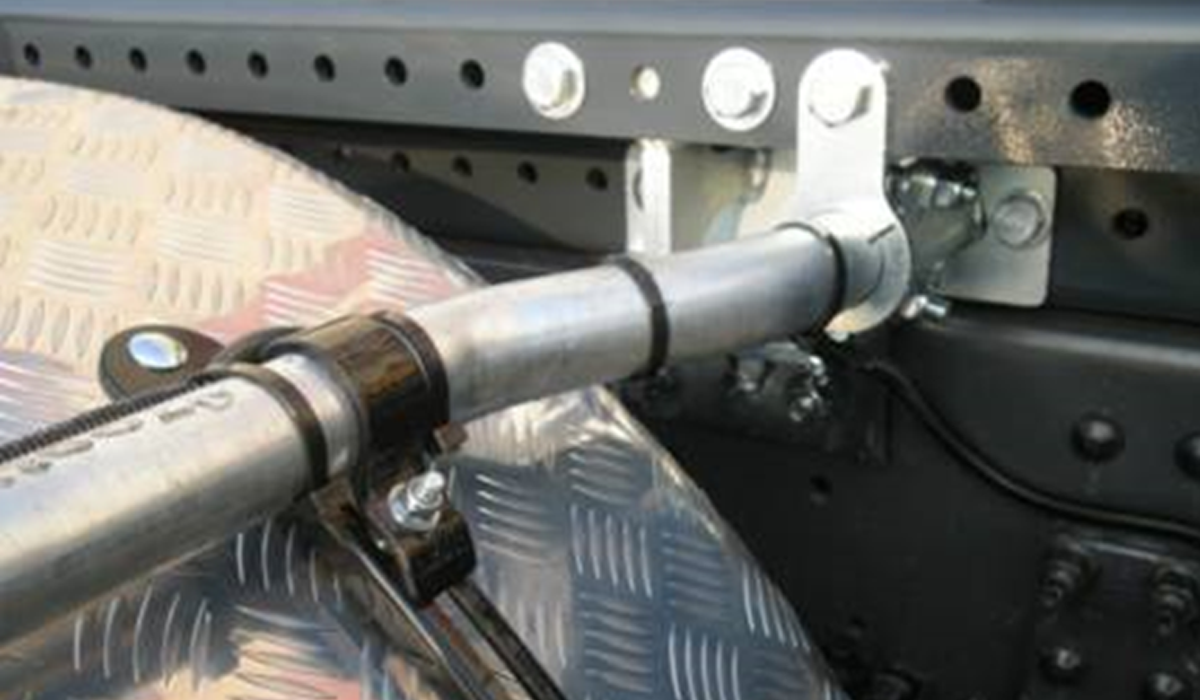

Easy to bolt on mudguards

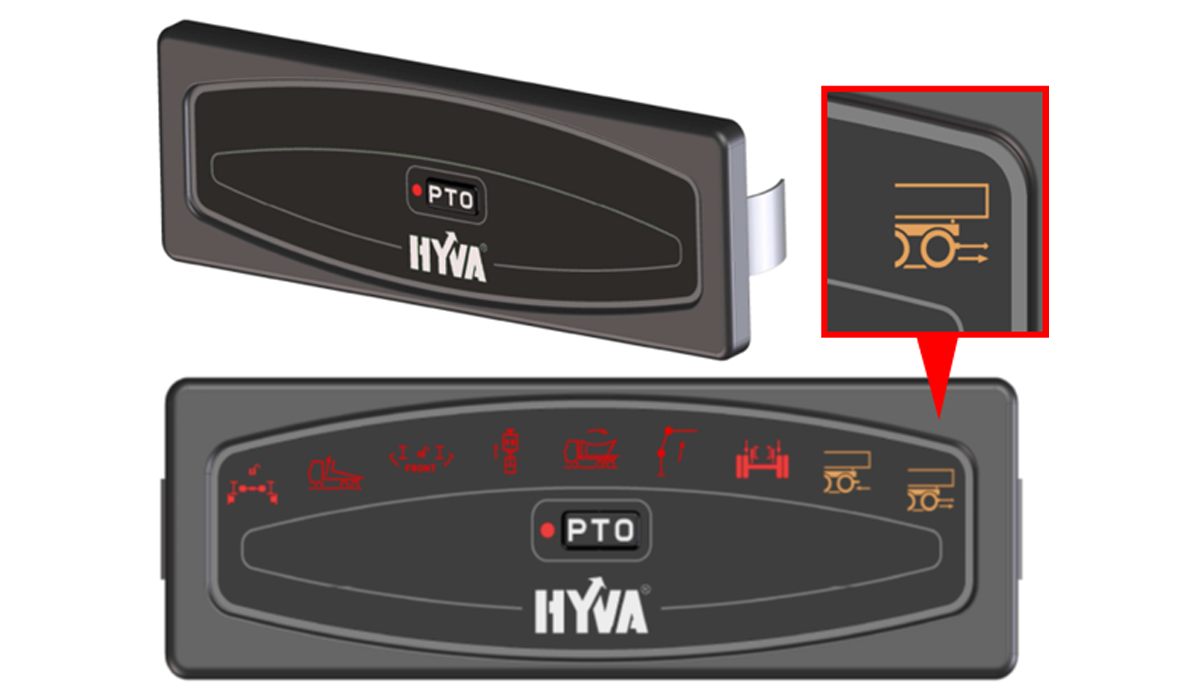

Electric in cab warning lights display

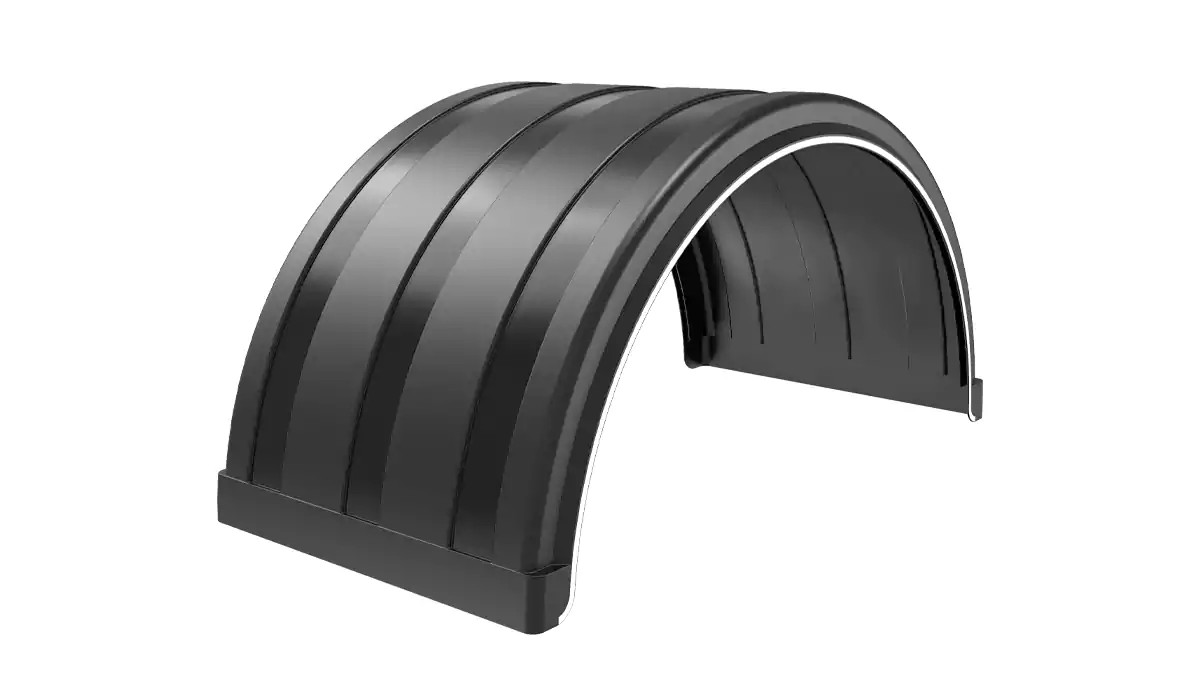

Polyethylene mudguards
