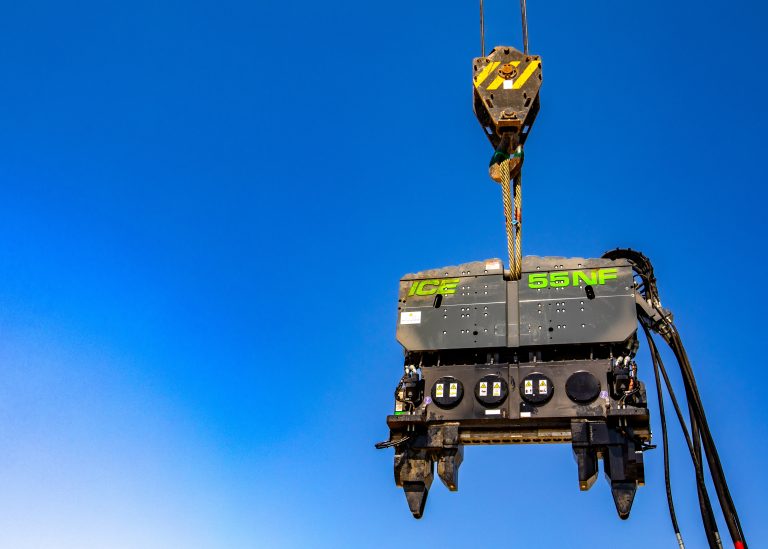

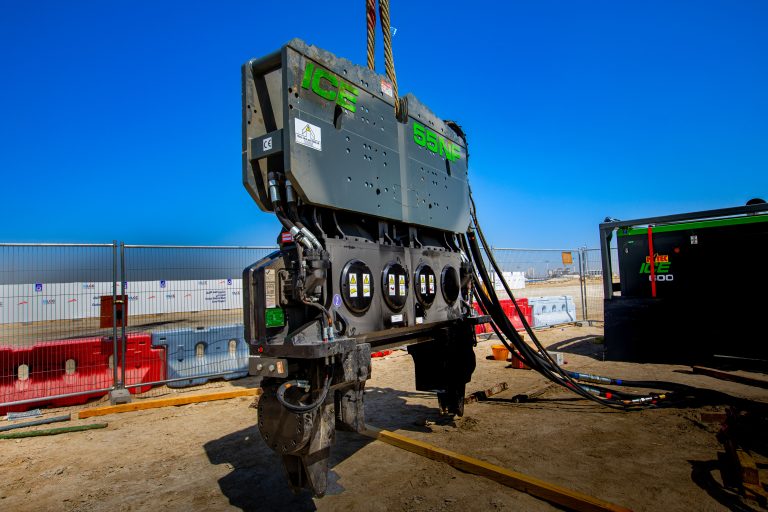

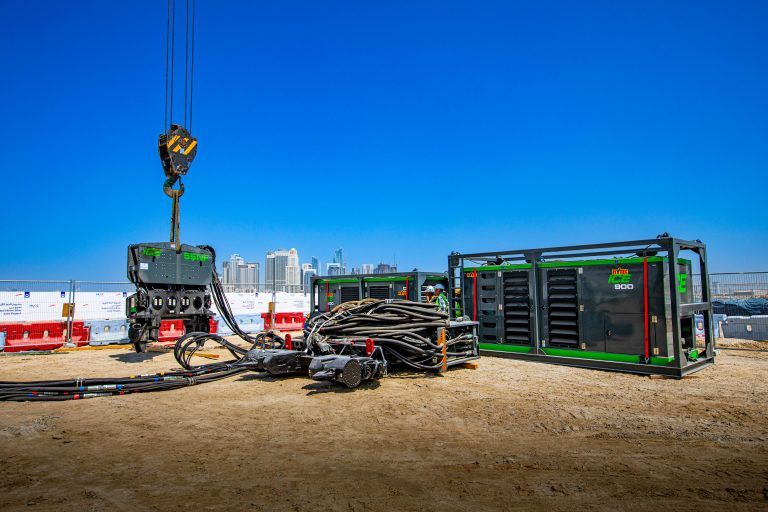

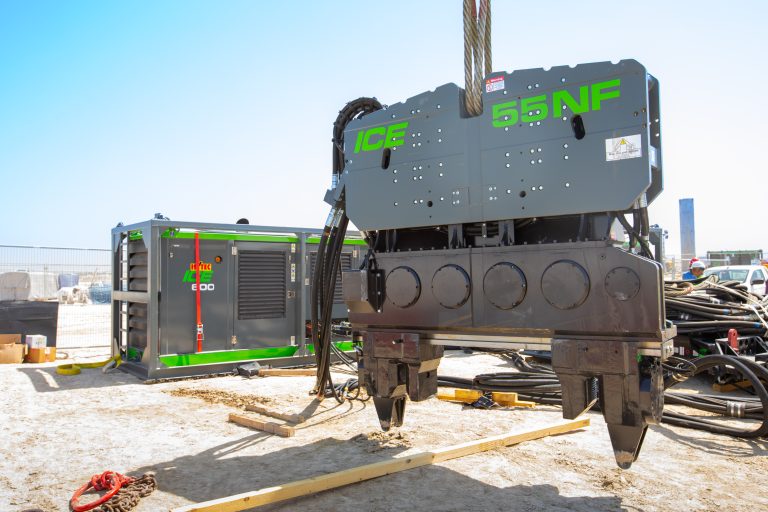

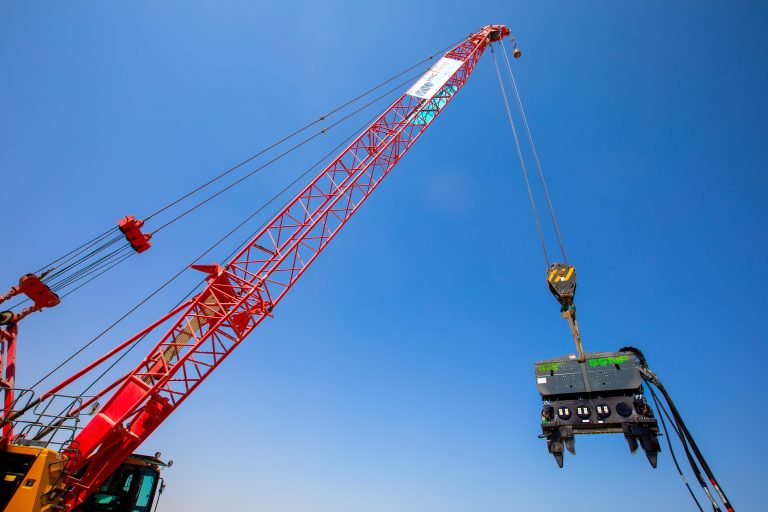

We are proud to introduce the ICE 55NF Vibratory Hammer, now commissioned and operational for a leading infrastructure project in Dubai.

Part of the renowned Dieseko Group’s ICE Normal Frequency (NF) series, the 55NF is engineered to deliver robust, efficient pile driving and extraction across diverse soil conditions – from urban foundations to offshore developments.

  • Forced Lubrication Cooling System: Ensures optimal cooling and lubrication during continuous operations, reducing wear and extending equipment life.
  • Radio Remote-Operated System: Enhances operator safety and flexibility, allowing full control from a secure distance.
  • Storage Cradle Protected Powerpack: Robust housing for transportation, safeguarding vital components against site hazards and harsh weather.
Know more
Technical Highlights

Max. Centrifugal Force : 1711 kN

Max. Amplitude: 30.1 mm

Max. Frequency: 1700 rpm

Static Line Pull: 800 kN

Dynamic Weight: 3580 kg

Compatible Power Pack: ICE 600 Series

Recommended Clamps:

Sheet Pile Clamp: 200TU | Tube Clamp: 100TC | Pile Clamp: 180TP

Applications

Driving and extraction of various profiles, Suitable for most soil types,

data sheet

Download data sheet

The ICE 55NF is part of a product line known for its precision, power, and proven reliability, supported by 24/7 global service and engineering excellence from the Dieseko Group.
Contact us today to learn how the ICE 55NF can power your next foundation project.
