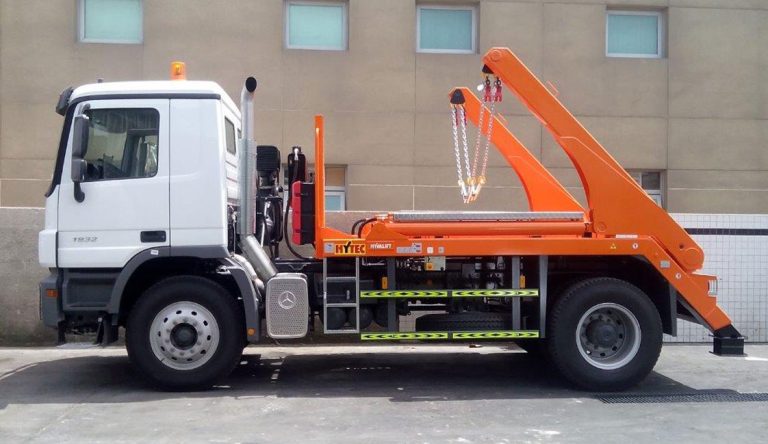

/Hyva Skiploader 12-18 TON
Revolutionizing Waste Management and Heavy Lifting in the UAE
Experience seamless operations with the Hyva Skiploader NG2018, designed to handle everything from construction debris to industrial waste with unparalleled ease and efficiency. Engineered with robust high-tensile steel and an advanced hydraulic system, the NG2018 is your go-to solution for heavy-duty lifting.
The latest benchmark in strength, durability and innovation.
Rear torsion bar and casing
- Heavy duty rear end with full under-run protection and minimal overhang
- The torsion casing is set on spreadable bearings.
- Stab jacks are standard for safe lifting and tipping of containers.
- Pneumatically operated tipping hook
- The ultimate high strength large diameter continuous torsion tube ensure a longer life
- Integrated rear collision bar
- Sturdy protection frames that can accommodate original rear tail lights

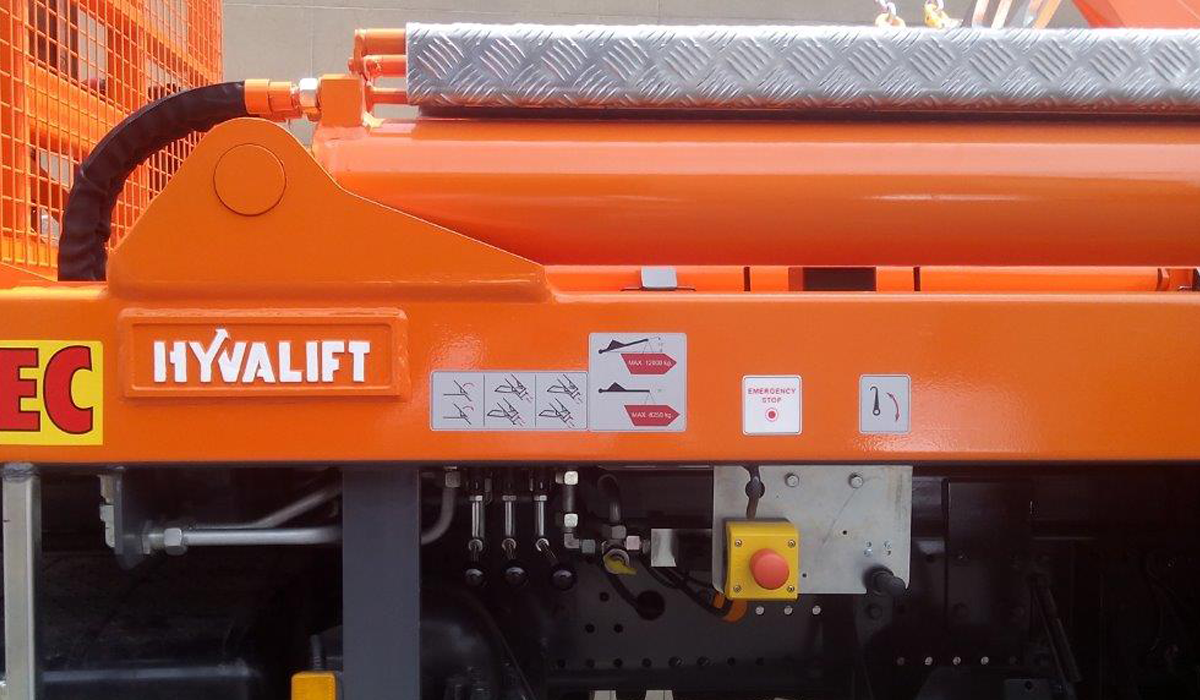

High pressure Hydraulics
- Maximum pressure of 310 bar.
- Hydraulic hoses are well hidden and protected inside the arms, ensuring reliability and durability
- Designed and fabricated according to the CE-regulations and marked CE
- Easy to operate side mounted levers for precise and accurate control (in-cab controls optional)
- Simplified, fully integrated hydraulic system for faster operation and greatly simplified maintenance

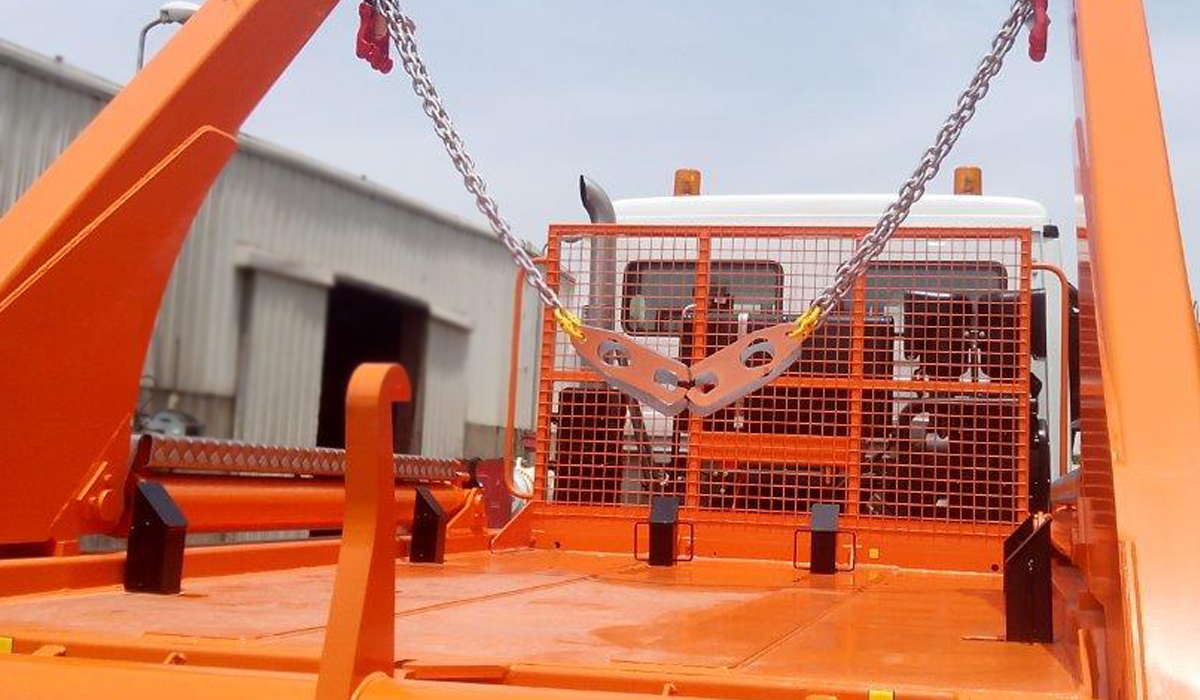

Wear resistant Platform
- Abrasion-resistant floor plates
- Impact-resistant steel protection plates for main cylinder
- Easy to clean platform
- Heavy duty double wear strips to platform floor
XL models for extra reach and versatility
- Special XL models available for higher tipping requirements (such as into other containers) and / or longer rearwards reach
- Telescopic arms that have the longest reach, with a length of 1450mm
Fully adjustable skip stops
- Fully adjustable skip stops to suit all types of containers (both length and width)
- Certified high quality lifting chains with optional chain shorteners
Lifting Arms
- Directly welded to torsion tube
- Precise synchronization of arm movements for harmonized

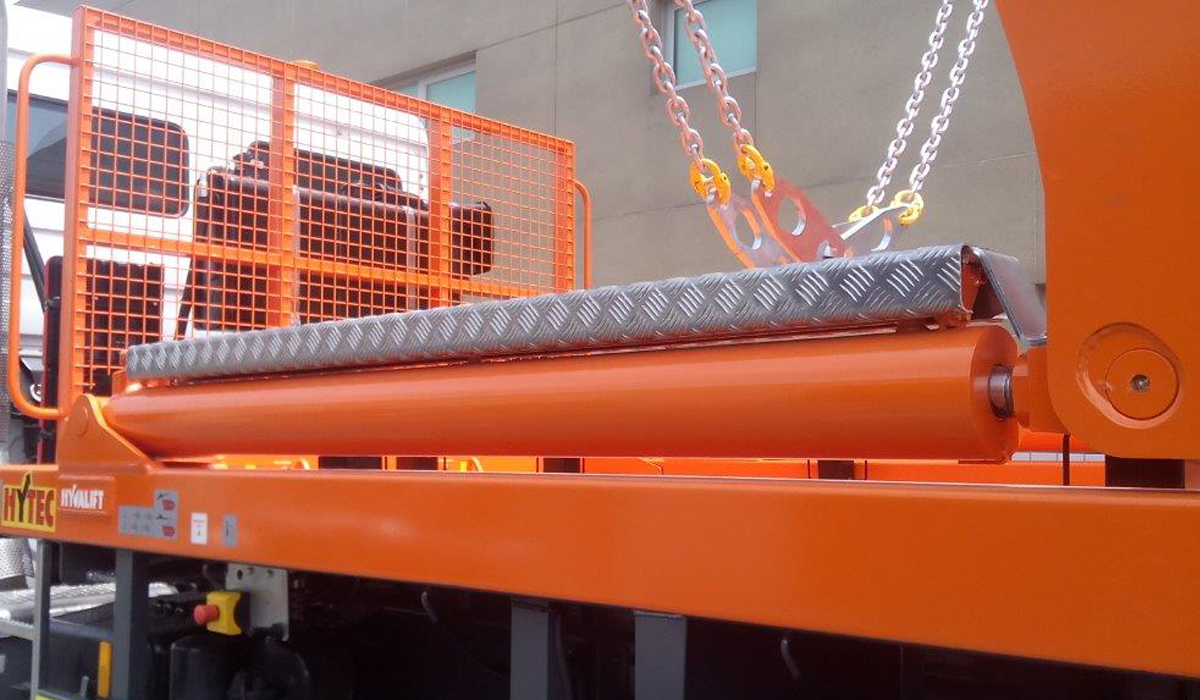

Heavy duty high strength material
- Platforms made from high tensile steel, combining strength and optimal carrying capacity
- Robust, ultra-reliable high-pressure telescopic arms combining fast action and high lift capacity
- Precise, robot welded, and constructed from high tensile materials
